CORSAIR Crystal Series 680X RGB with 3 intake fans on front and 5 exhaust fans resulting in negative pressure. That said, it’s best not to have things like unmanaged cable clutter shoved in a corner or stacks of drive cages in front of your intake fans that hinder direct airflow. Generally speaking, positive pressure is better because air will naturally be forced or find its way out of the case through perforations or other openings.
Conversely, more exhaust than intake airflow will cause a negative pressure. If you have more intake airflow than exhaust, then you’ll most likely have a positive pressure.
CORSAIR 4000D AIRFLOW FRONT PANEL FREE
Not only does this solution free up obstructions to the front panel intake fans, but you’ll also be benefitting from faster solid state drives compared to traditional 3.5″ drives.Īnother thing to keep in mind is how airflow can affect the pressure inside your case. If you are using multiple drives for your storage, consider switching to 2.5″ SSDs and mount them against the back panel instead.

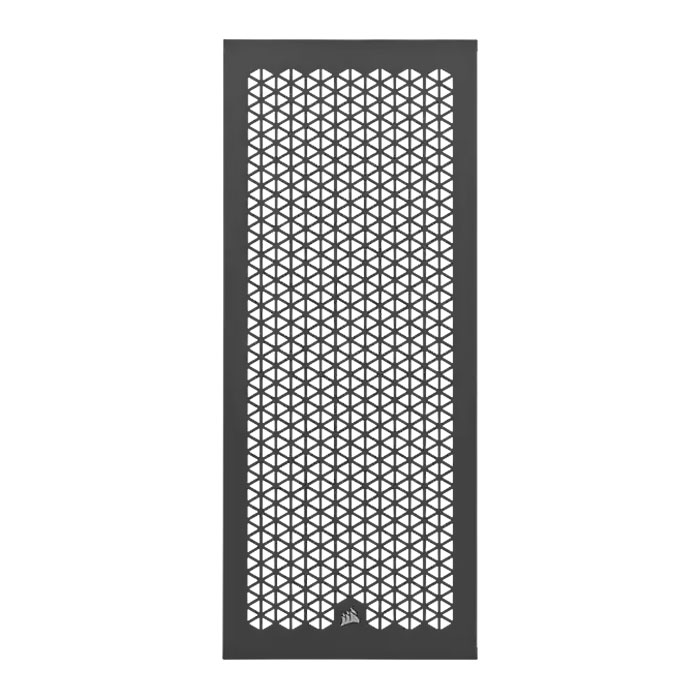

A modern CORSAIR chassis like the CORSAIR 4000D Airflow was designed for airflow (as you could probably tell by the name) with generously perforated cutouts on the front panel and takes advantage of these trends by keeping its single removable drive cage within the PSU shroud and omitting an ODD bay altogether, allowing for direct airflow from the front panel intake fans.Īs we mentioned before an older chassis like the 400R and 750D can also be adjusted for better direct airflow by simply removing the drive cages. CORSAIR 4000D Airflow Side ViewĪs case design has evolved, massive dedicated drive cages, and ODD bays have largely fallen out of favor due to the increasing popularity of fast M.2 storage solutions and the digital delivery of games/other software. The CORSAIR 750D took advantage of the emerging trend towards 2.5″ SSDs by allowing you to mount them against the back of the case while featuring removable 3.5″ hard drive cages that could be taken out to allow air to flow in more directly from the front panel fans, it did still support a 5.25″ ODD bay which limited the front panel to just two 120mm fans in the front. CORSAIR 750D drive cages reducing airflow from front panel intake fans. Looking at an older chassis like the CORSAIR 400R isn’t too different from many modern budget cases and will have permanently fixed drive cages sitting right up against the inside of the front panel.
CORSAIR 4000D AIRFLOW FRONT PANEL PC
Some PC cases like the Crystal Series 680X RGB even have room on the bottom panel where fans can be setup for intake to increase cold airflow.ĬORSAIR 400R (Left). Heat naturally rises, so having the exhaust fans on the top and rear panels would help guide the hot air out of the case.
Pulling fresh cold air through the front panel allows the airflow path to pass directly over your graphics card, CPU, and RAM to keep them cool. A very common setup would have case fans set to intake from the front panel of your chassis whereas exhaust fans would typically be configured on the top and rear panels. When setting up your case fans, having the right balance between intake and exhaust airflow is something to keep in mind. Let’s discuss the importance of what we at CORSAIR call, Direct Airflow Path in PC case designs. Picking the right chassis for your build is essential for thermal performance especially with modern components that are now drawing more power and producing more heat as the industry continues to push higher speeds and overclocking limits.
